Description
Features:

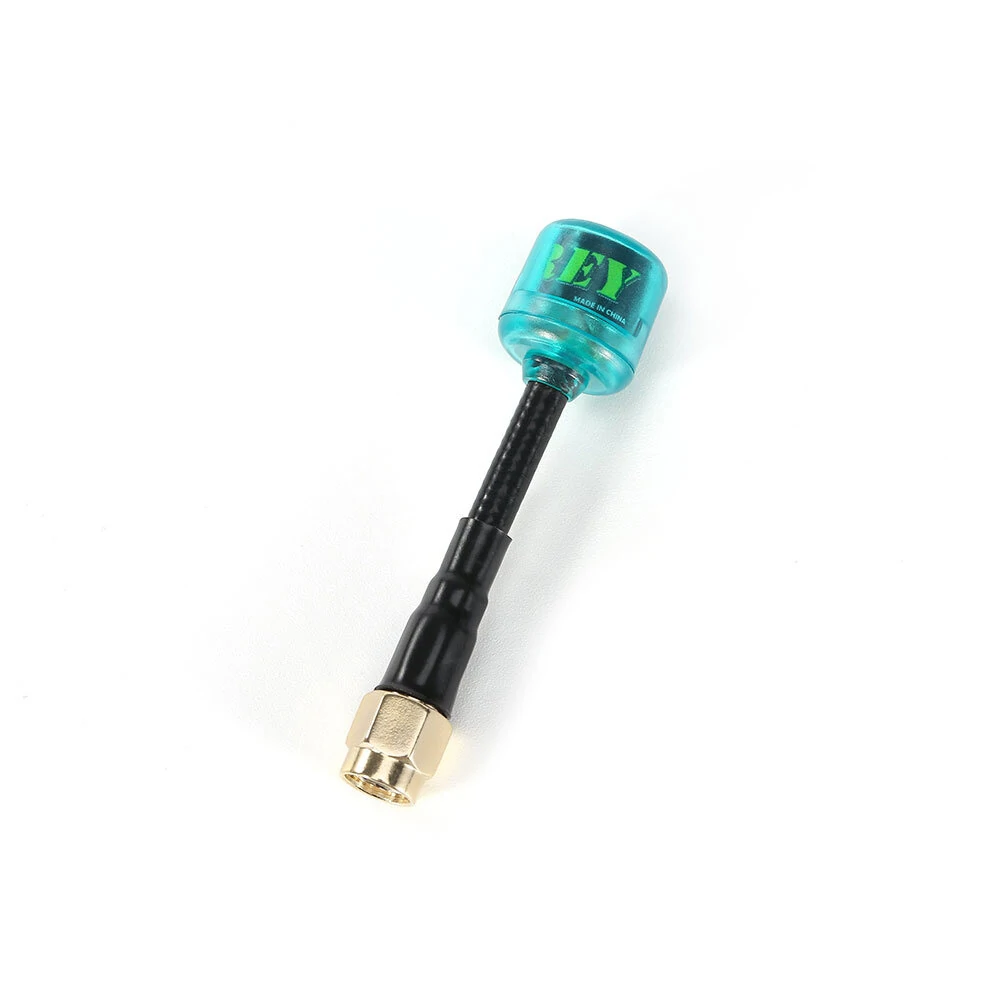

– With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to FPV pilots at an incredibly attractive price.
– The Osprey Antenna features a transparent casing, unique network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
– Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
– Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it’s possible.
– The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.
Specifications:
| Brand: | FlyfishRC |
| Gain: | 2.82dBi |
| Frequency: | 5.8GHz |
| V.S.W.R: | 1.2:1 |
| Radiation Efficiency: | 99% |
| Polarization: | LHCP |
| Connector: | Gold plated RP-SMA |
| Dimensions(head): | 14.1mm dia. X 14mm height. |
| Length: | 60mm |
| Cable: | Resilient RG141 coax. |
| Colors: | Transparent Black/Cyan (Optional) |
| Weight: | 6.9g |
Package Included:
1x FlyFishRC Osprey 5.8Ghz RP-SMA Antenna – LHCP 60mm
