Description
WARNING:
1. Install antenna before use.
2.To prevent overheating, provide constant airfiow and a well ventilated environment. Install a cooling fan if operating in confined conditions.
3.The 5V Output is just used for a Camera/Cooling Fan! Don’t connect Power Input / Battery to 5V Output port. Otherwise the VTX will be damaged.
Specifications:
| Frequency: | 5.8G |
| Power Output: | 1.6W |
| Voltage Input: | 7-28V |
| Size: | 36*36*10mm |
| Weight: | 18g |
| Connectors: | MMCX, RP-SMA |
| Smart Audio: | IRC Tramp |
Feature:
1.High Power Output: 1.6W power output ensures long-range FPV transmission with stable signal quality.
2.Compact Design: Measuring only 363610mm and weighing 18g, this lightweight transmitter is ideal for various applications.
3.Smart Audio Support: Compatible with IRC Tramp Smart Audio, allowing for in-flight parameter adjustments.
4.Wide Voltage Input: Supports a broad voltage range of 7-28V, flexible for different power systems.
5.Robust Connectors: Equipped with MMCX and RP-SMA connectors for easy and secure antenna connections.
Package included:

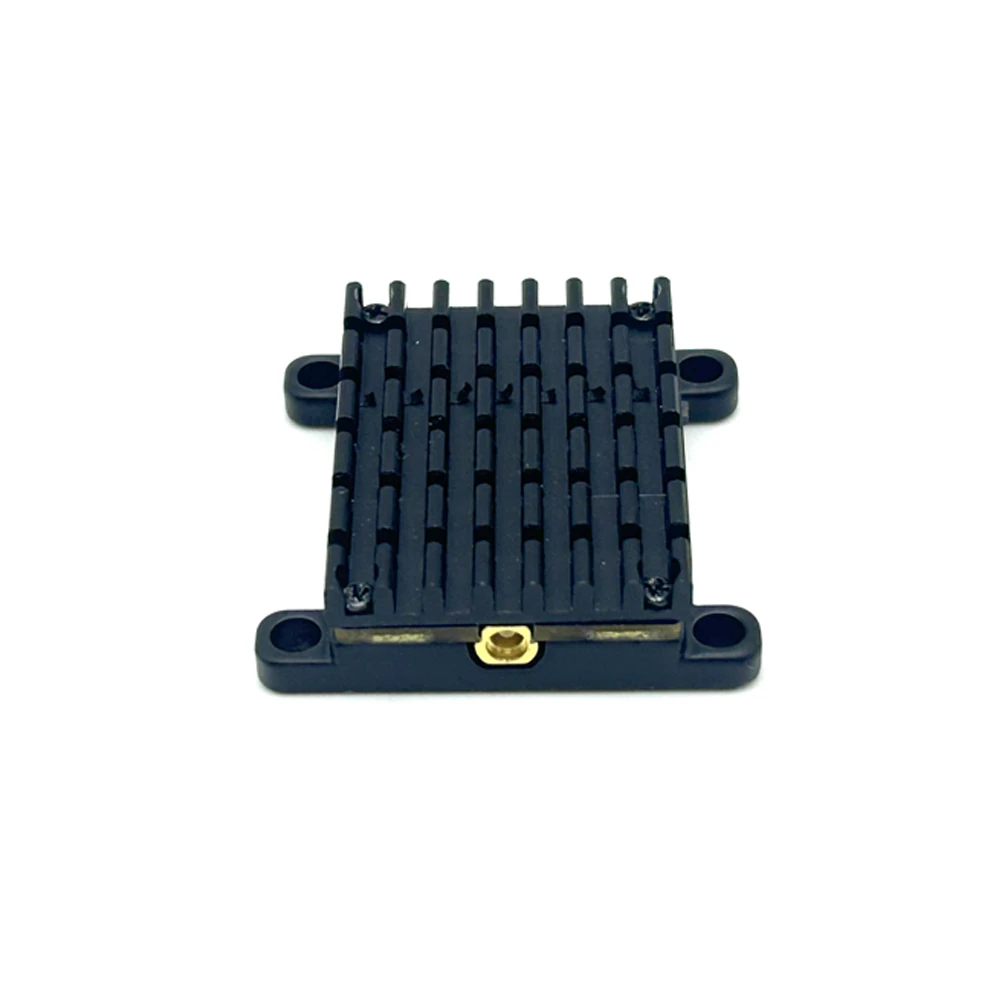

1x TX663 5.8G 1.6W Transmitter VTX Camera
1x Soft Antenna OR MMCX Adapter Cable
