Description:
| Brand Name: | EWRF |

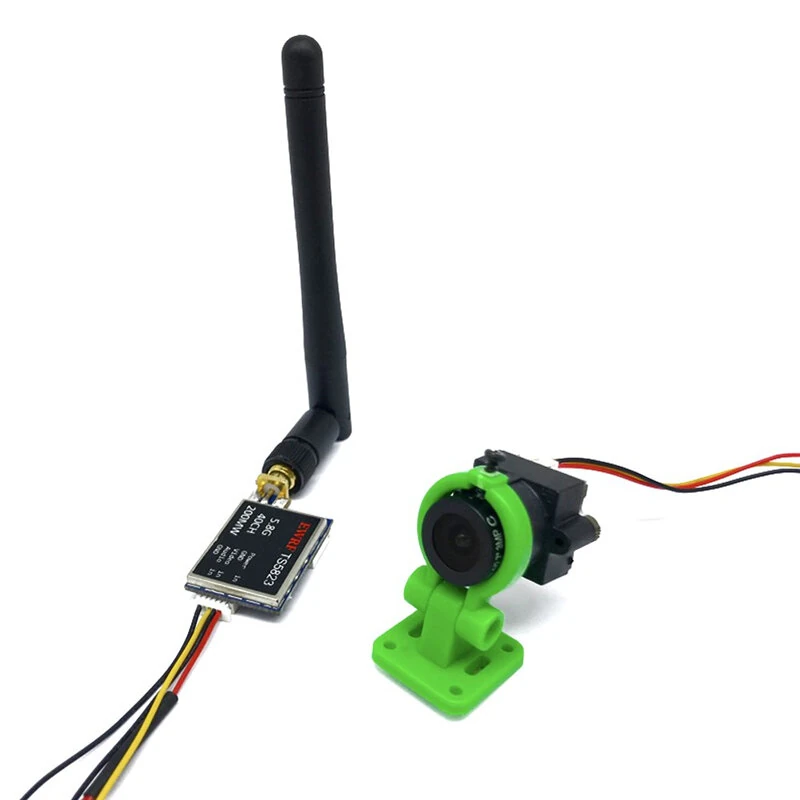

| Item Name: | FPV Transmitter + Camera Combo |
FPV Transmitter:
| Item Name: | TS5823 |
| Frequency: | 5.8G |
| Channel: | 40 |
| Transmitting Power: | 600mW/OFF(Pitmode) |
| Working Current: | 230mA (600mW version) |
| Power Supply: | DC 7-12V voltage is recommended. |
| Connector: | RP-SMA Female |
| Weight: | 5g |
| Dimension: | 30x20x8mm |
FPV Camera:
| Item Name: | Camera |
| Lens: | 2.8mm |
| FOV: | 120 |
| Image Sensor: | 1/3” CMOS |
| Pixels(H x V): | 1280(H) x 720(V) |
| Synchronization: | Internal |
| Minimu Illumination: | 0.05LUX/F 1.2 |
| Horizontal Resolution: | 1000TVL |
| White Balance: | Automatic |
| Autonatic Gain: | Automatic |
| Backlight Corponsation: | Automatic |
| Digital Noise Reduction: | (2D)/YBS(2D) |
| Gamma Correction: | 0.45 |
| Electronic Shutte: | 1/50 – 1/100. 000 S, 1/60 – 1/100.000 S |
| S/N Ratio: | 50dB |
| Video Output: | 1.0 Vp- P75 |
| Power Supply: | DC 7-12V |
| Working Current: | 1355mA |
| Operatio Temperature: | -40C ~ +105 |
| Signal System: |
PAL / NTSC |
The camera and image transmission transmitter share a power supply; a 7-12V voltage is recommended.
Frequency (Mhz)
| FR/CH | CHI | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A |
5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
| b |
5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
| C |
5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
| d |
5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
| E |
5658M | 5695M | 5732M | 5769M | 5806M | 5843M | 5880M | 5917M |
The transmitting power of the 40 channels is almost the same, 5645-5945M Hz reaching the standard completely!!
English Manual for EWRF TS5823, Click Here
Package Included:
Package Included:
| 1x EWRF TS5823 FPV Transmitter |
| 1x 1000TVL Camera |
| 1x Antenna |
| 2x Cable |
