Description
Description:
| Brand Name: | TS5823 Pro |

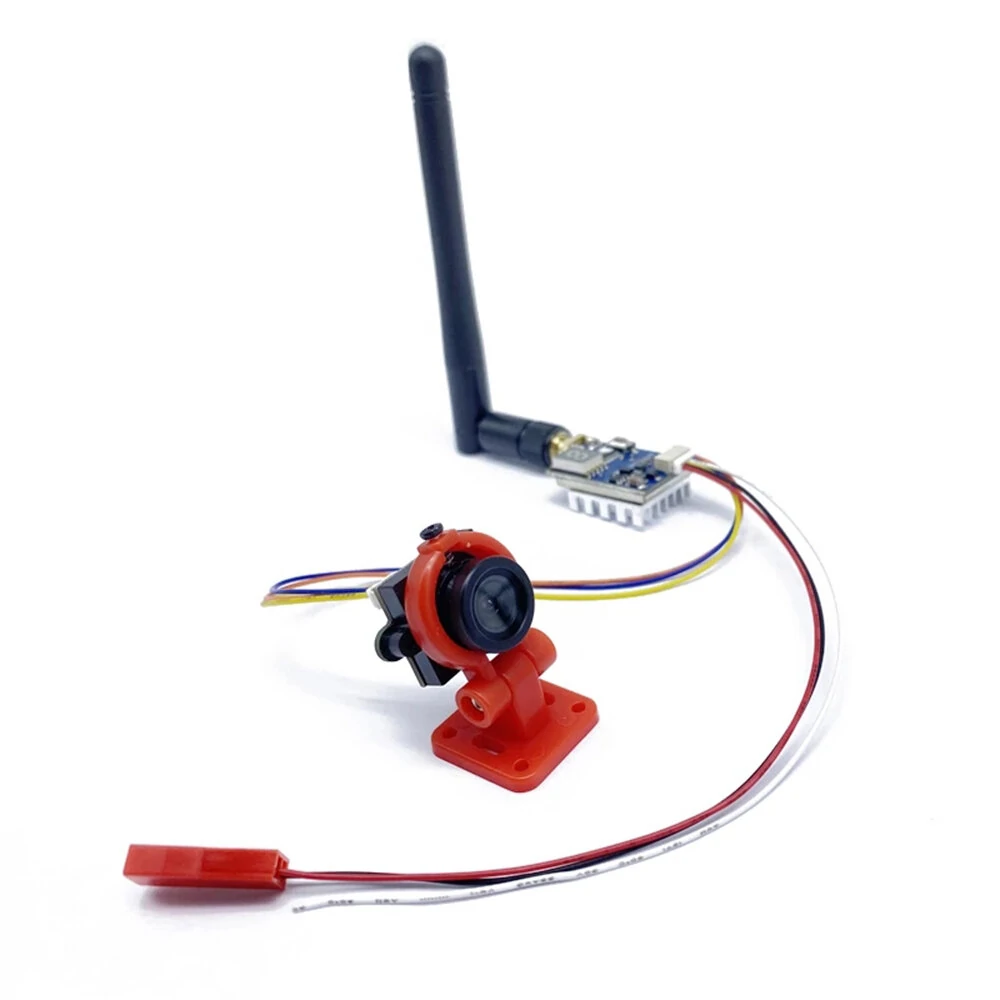

| Item Name: | FPV Transmitter with 700TVL Camera |
Transmitter:
| Model : | TS5823 Pro |
| Power Supply : | 7V-24V |
| VTX Power : | 600mW |
| Frequency : | 5.8Ghz |
| Channel : | 40CH |
| Antenna Connector : | RP-SMA |
| Working Current(12V) : | 230mA@600mW |
| Transmission Distance : | 600mW=2km(in open area,with clover antenna) |
| Weight : | 5g |
| Dimension : | 30 x 20 x 8mm (without antenna port) |
Camera:
| Power supply voltag: | 4V-17V |
| Resolution: | 700TVL CMOS |
| Angle: | 120 degree wide angle |
| Focal length: | 1.4mm |
| Format : | NTSC/PAL |
| Weight: | 3.6g |
Package Included:
| 1x 5.8G 40CH 600mW FPV Transmitter |
| 1x BEC 5V 700TVL CMOS camera |
