Description
Note:
– Camera parameters can be adjusted; but can not support changing resolution.
– The reverse connection of input and output will directly cause the transmission to burn out. Please check it before wiring.
Specification:
| Model: | 600mW VTX Camera |
| Frequency: | 5.8GHz |
| Channel: | 40CH |
| Power: | 600mW |
| Power Supply: | 7-12V |
| VTX Connetor | RP-SMA Female |
| Signal: | Analog Signal |
| Distance |
about 1000-2000 meters in the sky about 100-300 meters on the openning and undistrubed ground |
| Camera Horizontal Resolution: | 1200TVL |
| Weight: | 26g |
Package included:

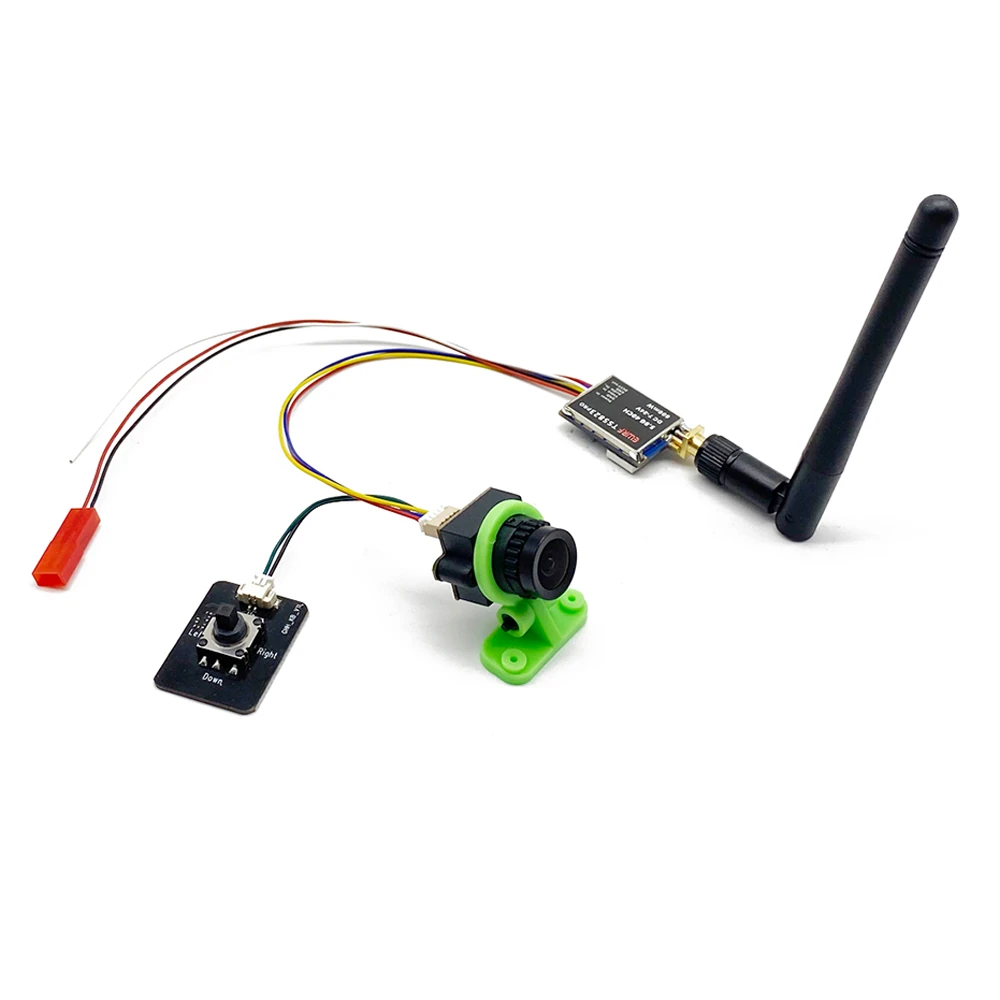

1x 600mW VTX Camera
