Description
Software Upgrade Guide (USB):http://myosuploads3.banggood.com/products/20200311/20200311041337EV300DSoftwareUpgradeGuideUSB.pdfClick here to download the manual: myosuploads3.banggood.com/products/20191110/20191110214741EV300D.pdf
More parameter:myosuploads3.banggood.com/products/20191108/20191108030652-converted.pdf

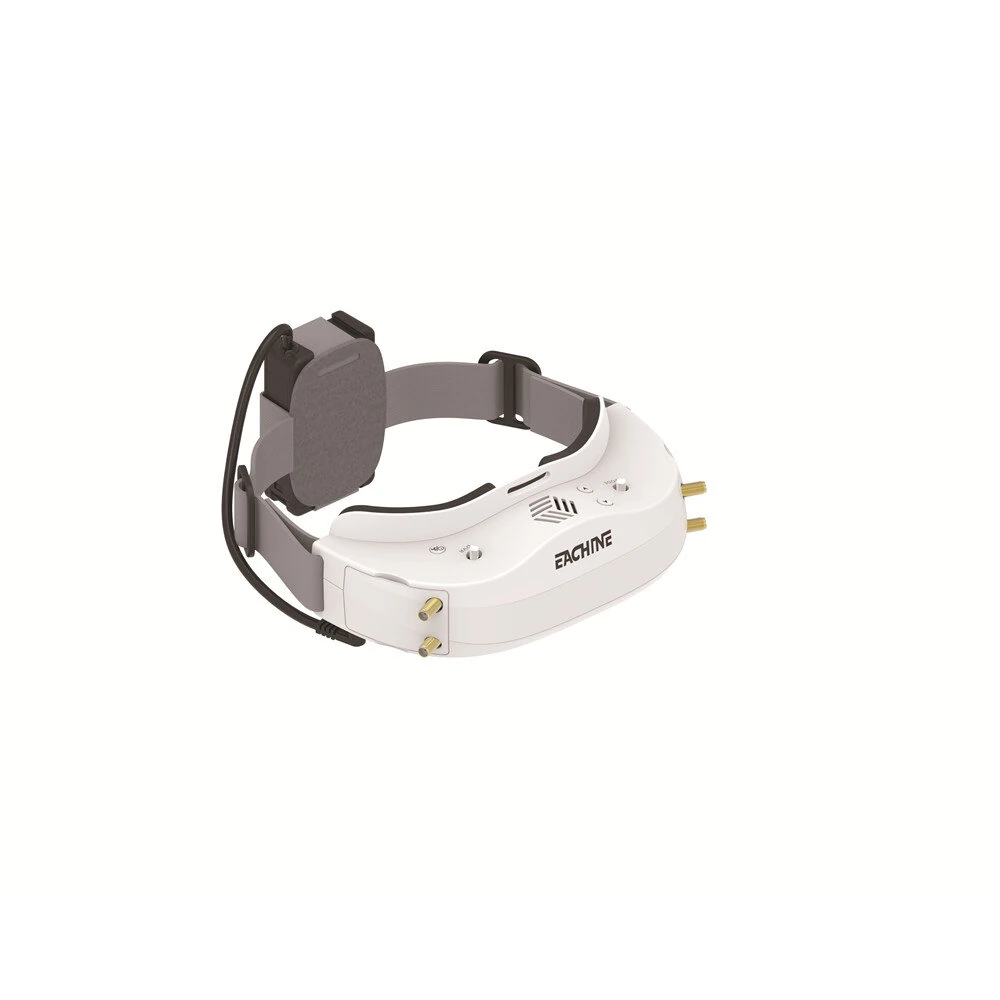

Features– High-Resolution Display: Equipped with 1280960 LCoS screens, featuring a native 4:3 aspect ratio (switchable to 16:9) for flexible viewing.- Wide Immersive FOV: 42 diagonal field of view, offering an expansive visual experience during flight.- Customizable Vision & Fit: Interpupillary Distance (IPD) adjustable from 56-72mm; focus adjustment ranging from +3.0 to -8.0 diopters, accommodating diverse vision needs.- Dual True Diversity Receiver System: Supports 2 external RX modules, each fitted with 2 SMA antenna ports, ensuring stable signal reception even in complex environments.- Built-in DVR Function: Records video in H.264 format, compatible with Micro-SD cards up to 64GB (not included).- Multiple Input & Audio Options: Features miniHDMI port, 3.5mm AV input port, and 3.5mm headphone jack for versatile connectivity.- Informative OSD Menu: Displays critical real-time data including RSSI signal strength, battery level, and DVR recording status.- Anti-Fog Design: Built-in fan prevents lens fogging, maintaining clear visibility in varying temperatures.- Easy Firmware Upgrade: Supports upgrade via SD card or USB for enhanced functionality.- Flexible Power Supply: Compatible with DC 7.4V-28V input, suitable for 2S-6S Li-ion batteries.
Specifications
| Frequency | 5.8GHz |
| Frequency Range | 53335945 MHz |
| Receiver Sensitivity | -93 dB |
| Receiver Connector | SMA Female |
| Antenna Impedance | 50 |
| Audio & Video | Support AV Input/Output |
| Video Format | NTSC / PAL |
| Display Adjustments | Brightness (Adjustable) / Contrast (Adjustable) |
| Interpupillary Distance (IPD) Adjustment | 56-72mm |
| Focus Adjustment | -8.0~+3.0 diopters (supports myopia up to -800, hyperopia up to +300) |
| Vision Correction | Compatible with astigmatism/myopia/hyperopia (diopter lenses not included) |
| Power Input | DC 7.4V-28V |
| Low Voltage Protection | 6.8V |
| Operating Temperature | -10C ~ 40C |
| Net Weight (without modules) | 208g |
| Weight (with modules) | 340g |
| Software Upgrade Guide (USB): | http://myosuploads3.banggood.pdf |
| Firmware: | FORMERGE.zip ( EV300d Release Notes V0.2.25 2020-02-25 ) |
| Manual: | EV300D.pdf |
| More parameter: | Eachine EV300D.pdf |
