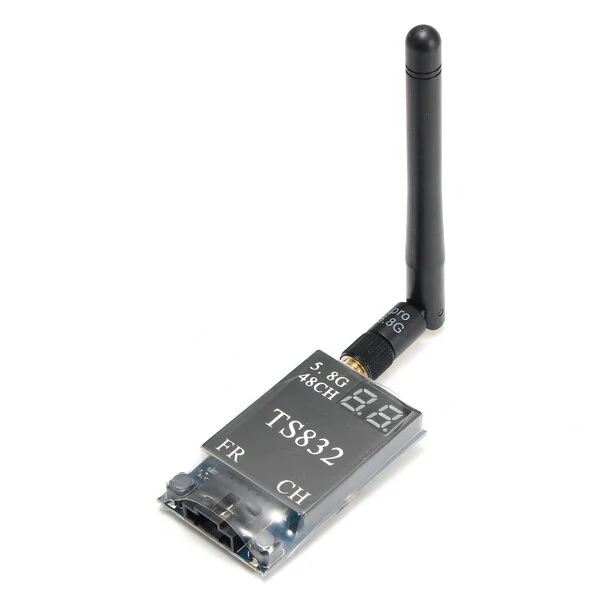

Eachine Boscam TS832 5.8GHz 48CH 600mW FPV Transmitter 7.4-16V for FPV Racing RC Drones

Description

Features:

• 5.8GHz 600mW 48-channel AV wireless FPV transmitter
• 48 channels available for optimal transmission quality
• Supports A, B, E, and F frequency bands
• 48-channel compatibility with all 5.8GHz FPV receivers
• Compact and lightweight design
• Low power consumption: only 200mA at 600mW output
• 600mW output ensures up to 5km transmission distance in open areas; extendable to 5-8km with a higher-gain antenna

 Description:

Brand Name:	Eachine
Item Name:	TS832 transmitter
Antenna Gain:	2db
Frequency:	5.8GHz
Transmitting Power:	600mA
Power Input:	7.4-16V (3S Lipo suggested)
Video Format:	NTSC / PAL Auto
Working Current:	220mA at 12V
Audio Bandwidth :	6.5M
Video Bandwidth:	8M
Weight:	about 22g
Dimension:	54x 32x 10mm(excluding antenna)
Connector:	Transmitter module side RP-SMA jack, Antenna RP-SMA plug



Frequency Table
Frequency Band A	5865	5845	5825	5805	5785	5765	5745	5725
Frequency Band B	5733	5752	5711	5790	5809	5828	5847	5866
Frequency Band C	5705	5685	5665	5645	5885	5905	5925	5945
Frequency Band D	5740	5760	5780	5800	5820	5840	5860	5880
Frequency Band H	5658	5695	5732	5769	5806	5843	5880	5917
Frequency Band L	5474	5492	5510	5528	5546	5564	5582	5600

Package Included:1 x cable1 x antenna1 x Eachine TS832 transmitter

or

1 x Eachine TS832 transmitter+ RC832 receiver set

,,,,,,,
