Description
Product Specifications:
Output Power: 0-25-400-800-1500-2500mW
Input Voltage: 6-36V
Parameter adjustment Mode: Double Buttons /OSD
0perating Current: less Than or equal to 450mA@12V, 800mW
Less Than or equal to 850mA@12V,2500mW
Output Frequency: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Installation Hole: 30.5 * 30.5mm
Video Format: NTSC/PAL. automatic Detection
Weight: 12.5g (excluding antenna and Power Cord)
Size: 35.5 * 36.5 * 10mm
Features:
1. Self-check Function of Power Supply Can Quickly Check Whether The image Transmission is Normal.
2. Frequency Locking Function, Which Will not Interfere With the Companion When Starting The Machine.
3. 0-2.5W Power is adjustable, Allowing you to Switch Seamlessly in Different Environments.
Package Included:

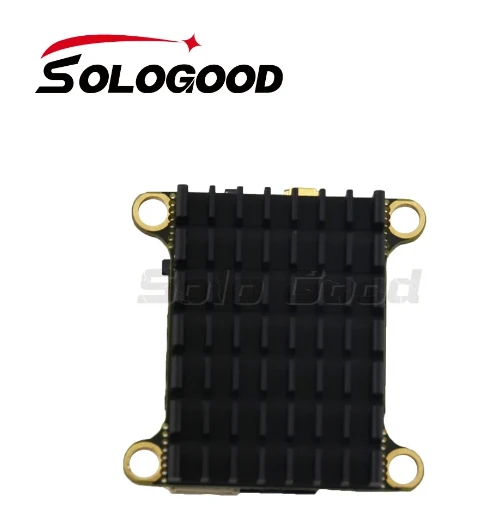

1 x SoloGood 5.8G 2.5W VTX
1 x MMCX -SMA feeder
1 x 4pin wire
