Description
Description:
– The flight control uses the STM32H743 high-performance MCU, with the default Betaflight firmware, and also supports INAV and Ardupilot firmware, with a 32-bit 70A 4IN1 ESC, to achieve ultimate racing performance.
– The T700-grade high-strength carbon fiber fuselage and lightweight positive X-structure arm enhance rigidity and vibration resistance, making it as stable as a rock when cornering at high speeds.
– Equipped with high-strength aviation-grade aluminum columns to better protect the camera and fly tower.
– Supports 6S and 8S voltage configurations, 6S extreme control, 8S extreme speed, and enjoy the thrill of air racing.
– The low-latency RunCam Racer Nano4 camera provides stable VTX information and clear image quality, allowing you to control the flight status in real time and enjoy the fun of flying.
– The O4 VTX can be used with DJI Goggles3 glasses to enable low-latency mode, allowing high-definition image quality to be used in racing flights.

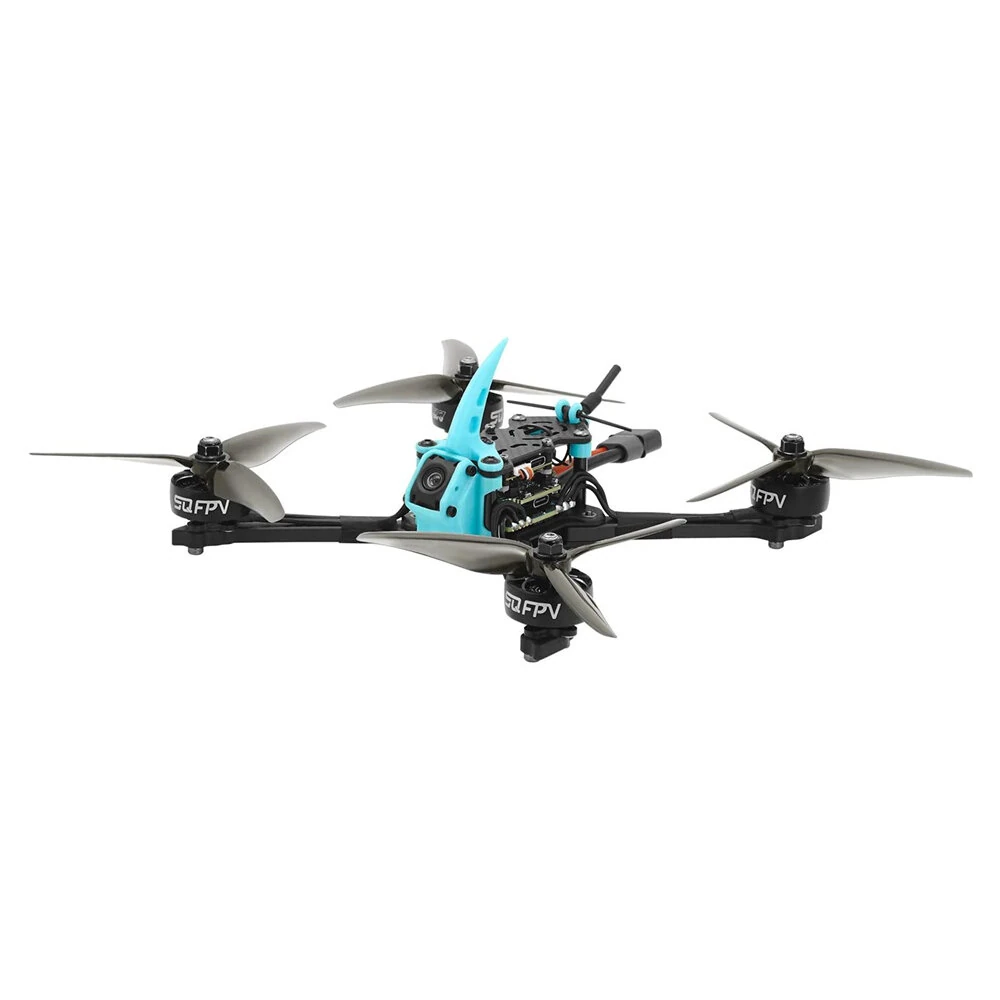

– Rison5 is specially designed for 5-inch FPV racing drone competitions. It adopts top-level competition configuration, high-burst racing motor, and precisely tuned PID parameters. The whole machine has a fast response speed and is easy to operate and fly.
Specification:
Brand:SEQURE
Model: SQFPV Rison5
|
Model |
Rison5 |
|
Frame structure |
Positive X |
|
Carbon plate material |
T700 |
|
Arm thickness |
5.5mm |
|
Wheelbase |
210mm |
|
Propellers |
Gemfan 51466 V2 |
|
Flight controller |
STM32H743Betaflight |
|
ESC |
Bluson A1 32Bit 70A 4IN1 |
|
OSD chip |
AT7456E |
|
Black box |
16MB |
|
Gyroscope |
ICM-42688P (default) MPU6000 (customizable) |
|
Motor |
SEQURE S2207 2100KV6S |
|
VTX |
DJI O4 Air Unit / MINI VT5804 L1 600mw |
|
Camera |
DJI O4 Air Unit / RunCam Racer Nano4 |
|
VTX Antenna |
O4 Original Antenna / MMCX 5.8G Analog Right-Handed RHCP Lollipop Antenna |
|
Receiver |
ELRS 2.4G Single RX |
|
Operating Voltage |
4-6S14V-26V/4-8S14V-35V |
|
Recommended Battery (Not included) |
6S LiPo/LiHV 1050-1400mah |
|
Battery Connector |
XT60 |
|
Recording |
DJI O4 Air Unit supports up to 4K 60fps |
|
Weight (excluding battery) |
300g |
Package Included:
1 x Rison5 FPV Drone
2 x Gemfan 51466 V2 propellers
1 x 20*280mm cable tie
1 x Silicone battery anti-slip pads
1 x USB data cable
1 x H2.0 wrench
1 x Propeller wrench
1 x Instruction manual QR code
