Description
Note: Dimensions are for reference only. Actual product may vary slightly due to manufacturing tolerances.

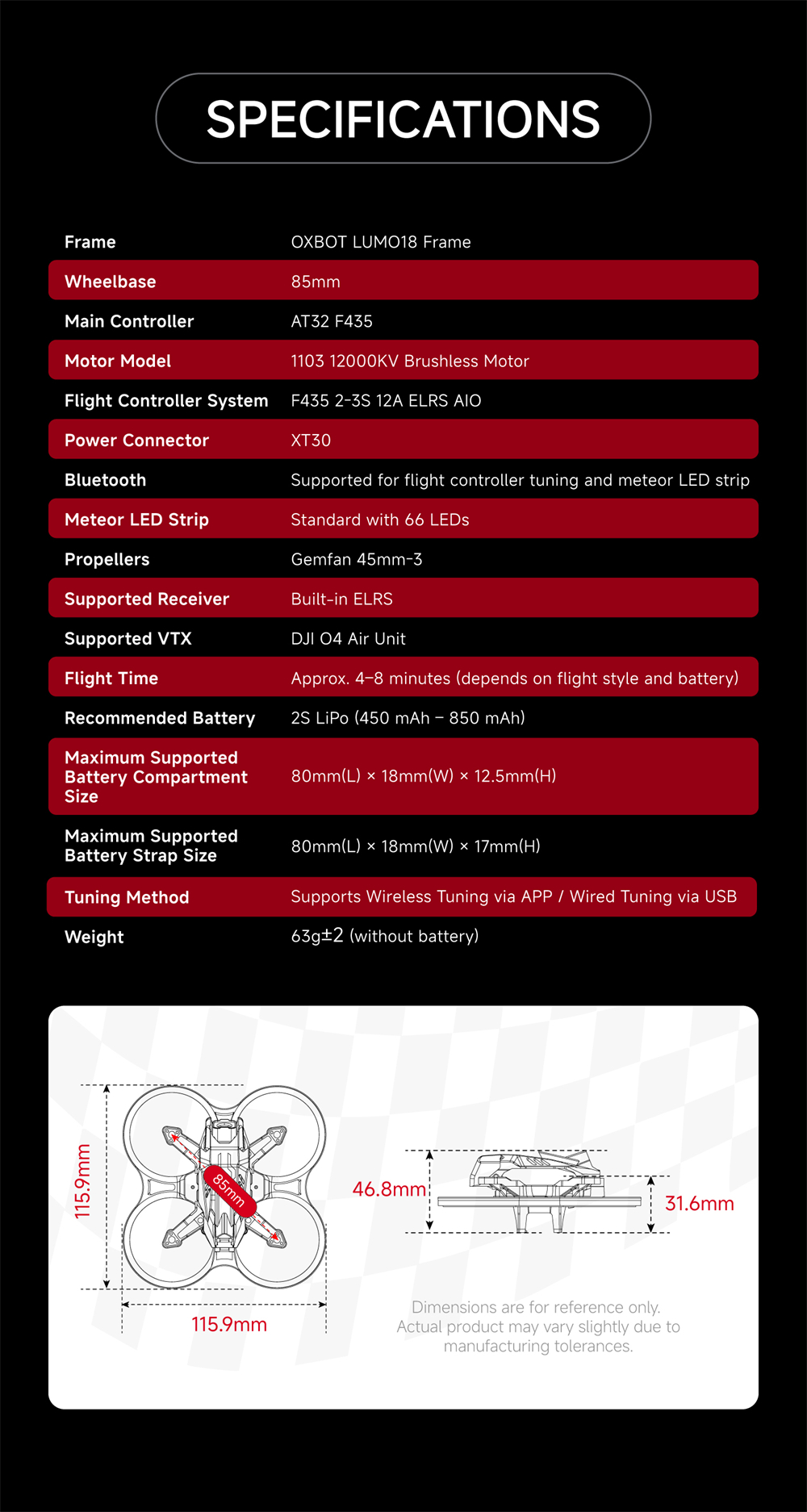

Specification:
Brand: OXBOT
Model: LUMO18

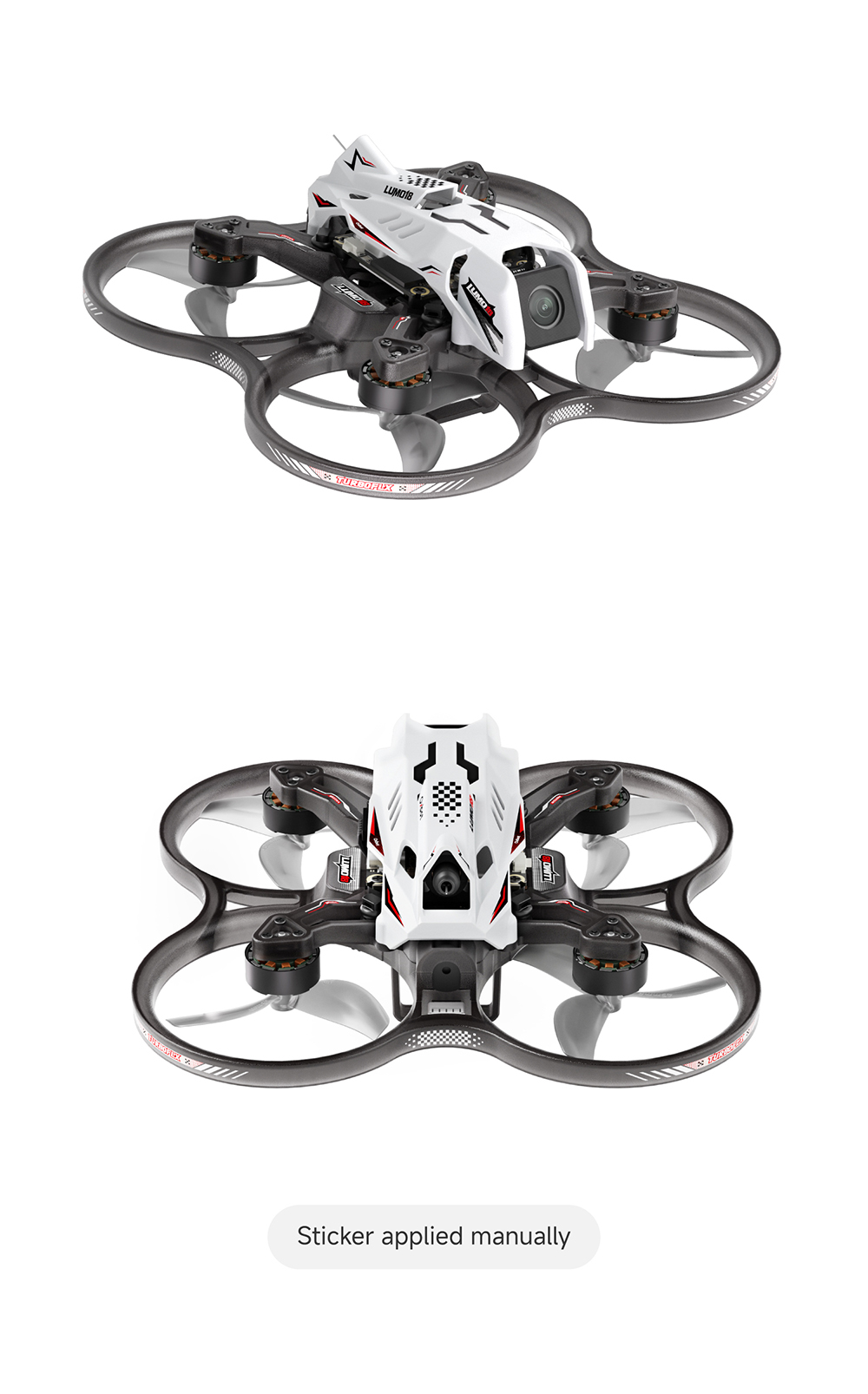

Item Name: 1.8 Inch O4 HD Digital FPV Racing Drone
Frame: OXBOT LUMO18 Frame

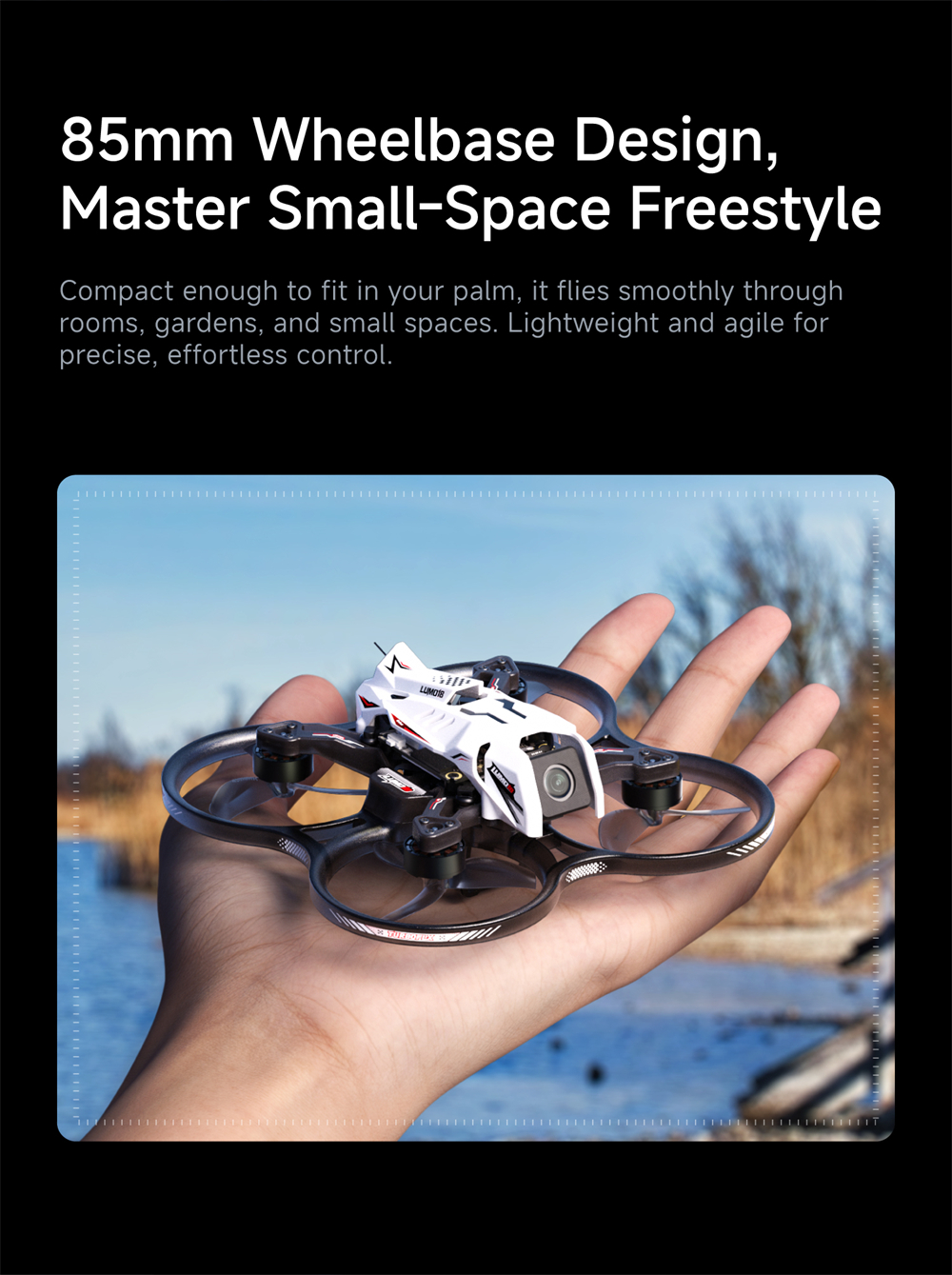

Wheelbase: 85mm
Main Controller: AT32 F435

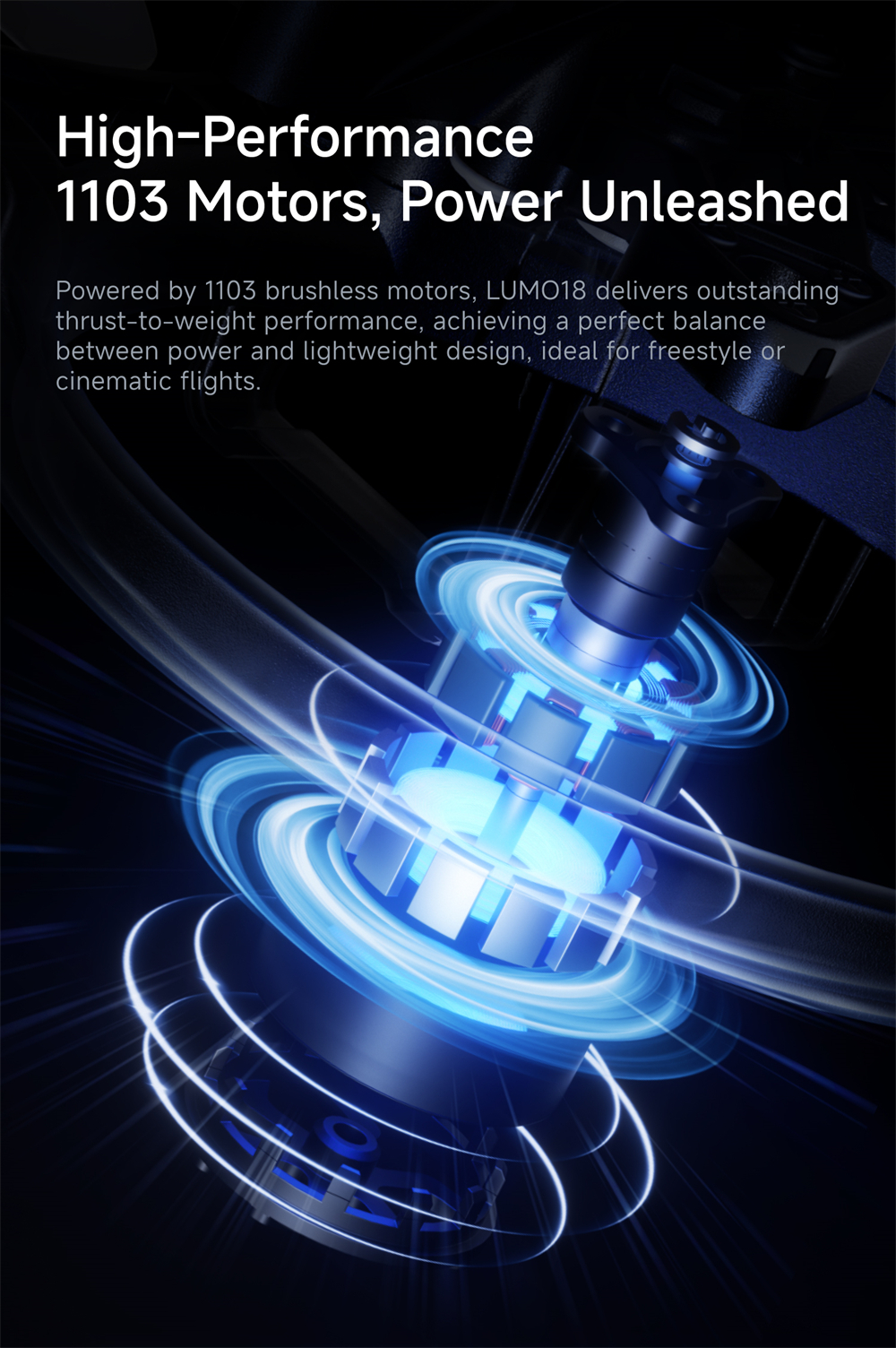

Motor Model: 1103 12000KV Brushless Motor
Flight Controller System: F435 23S 12A ELRS AIO
Power Connector: XT30
Bluetooth: Supported for flight controller tuning and meteor LED strip

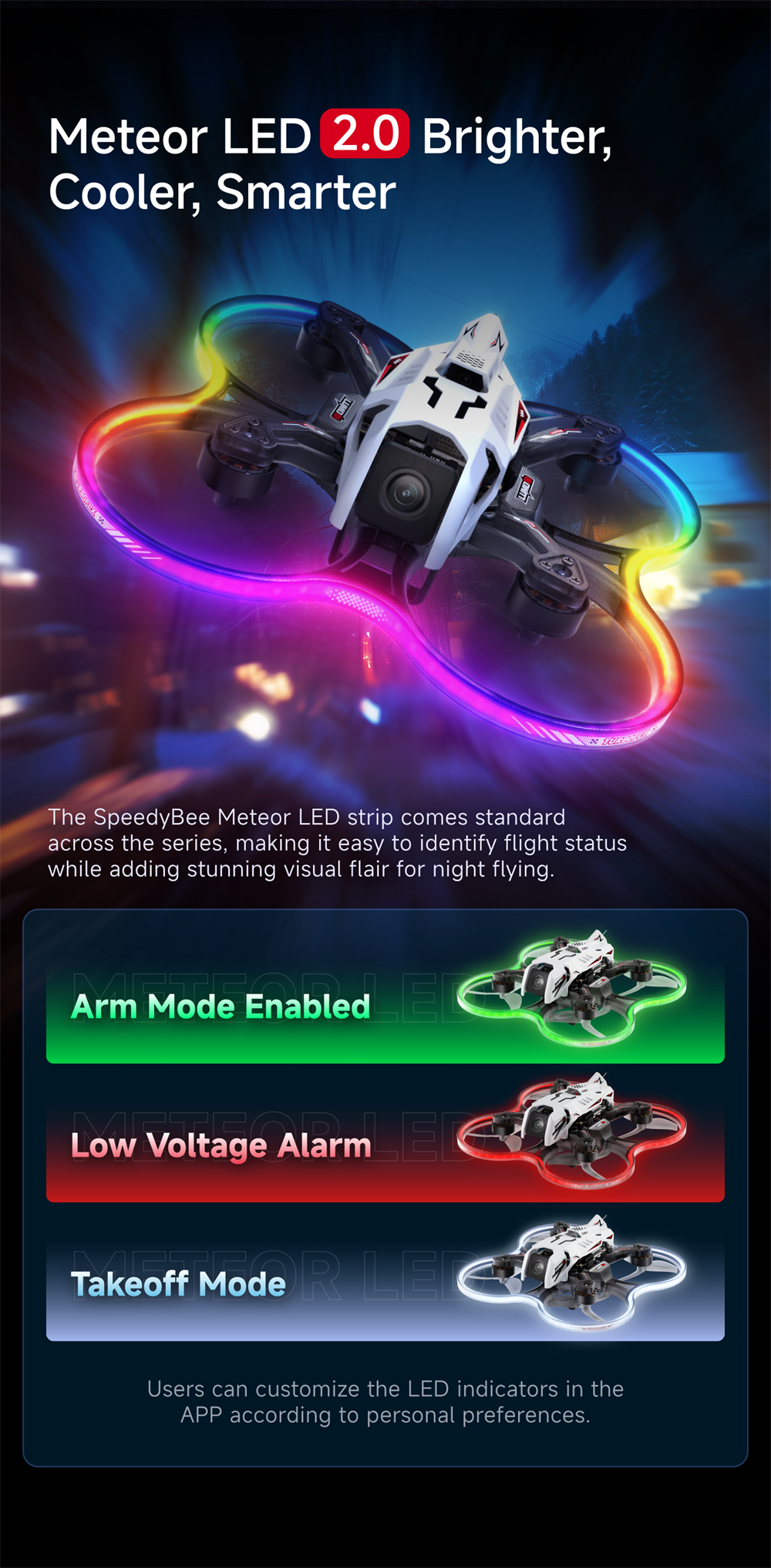

Meteor LED Strip: Standard with 66 LEDs
Propellers: Gemfan 45mm-3
Supported Receiver: Built-in ELRS
Supported VTX: DJI O4 Air Unit

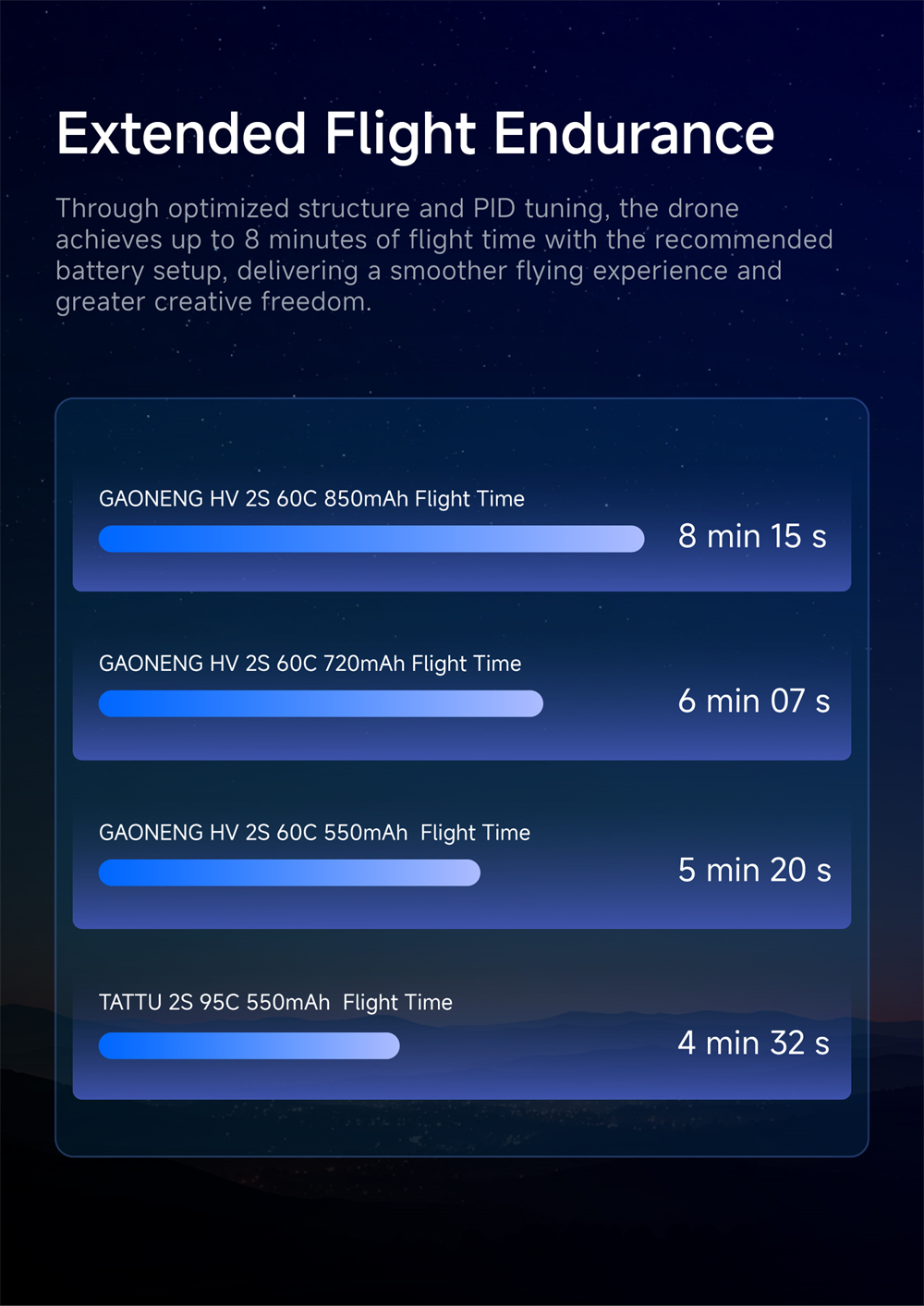

Flight Time: Approx. 48 minutes (depends on flight style and battery)
Recommended Battery: 2S LiPo (450 mAh 850 mAh)

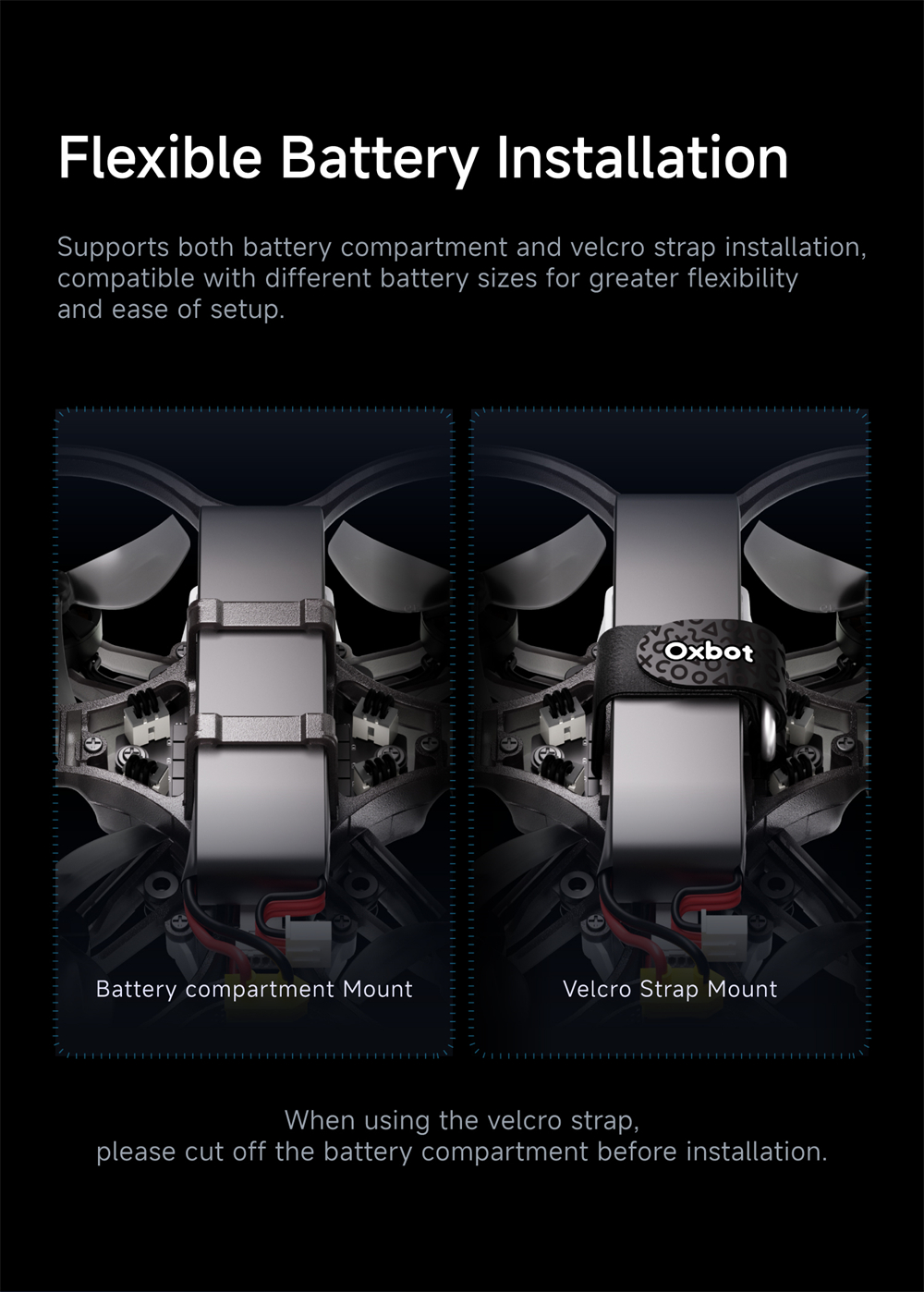

Maximum Supported Battery Compartment Size: 80mm(L) 18mm(W) 12.5mm(H)
Maximum Supported Battery Strap Size: 80mm(L) 18mm(W) 17mm(H)
Tuning Method: Supports Wireless Tuning via APP / Wired Tuning via USB
Weight: 63g 2 (without battery)
Dimensions:
Overall size: 115.9mm 115.9mm
Height: 46.8mm
Body thickness: 31.6mm

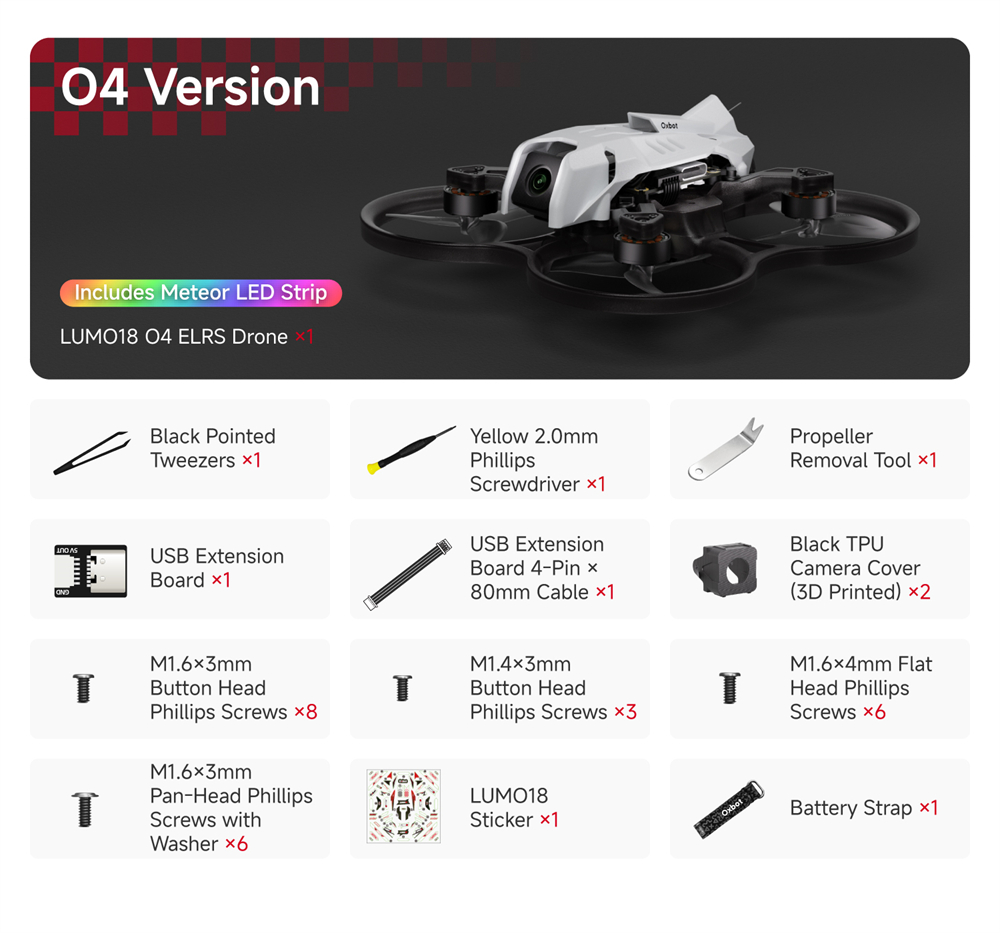

Package Included:
1x LUMO018 O4 ELRS Drone
1x Black Pointed Tweezers
1x Yellow 2.0mm Phillips Screwdriver
1x Propeller Removal Tool
1x USB Extension Board
1x USB Extension Board 4-Pin 80mm Cable
2x Black TPU Camera Cover (3D Printed)
8x M1.63mm Button Head Phillips Screws
3x M1.43mm Button Head Phillips Screws
6x M1.64mm Flat Head Phillips Screws
6x M1.63mm Pan-Head Phillips Screws with Washer
1x LUMO18 Sticker
1x Battery Strap
