Description
Description:

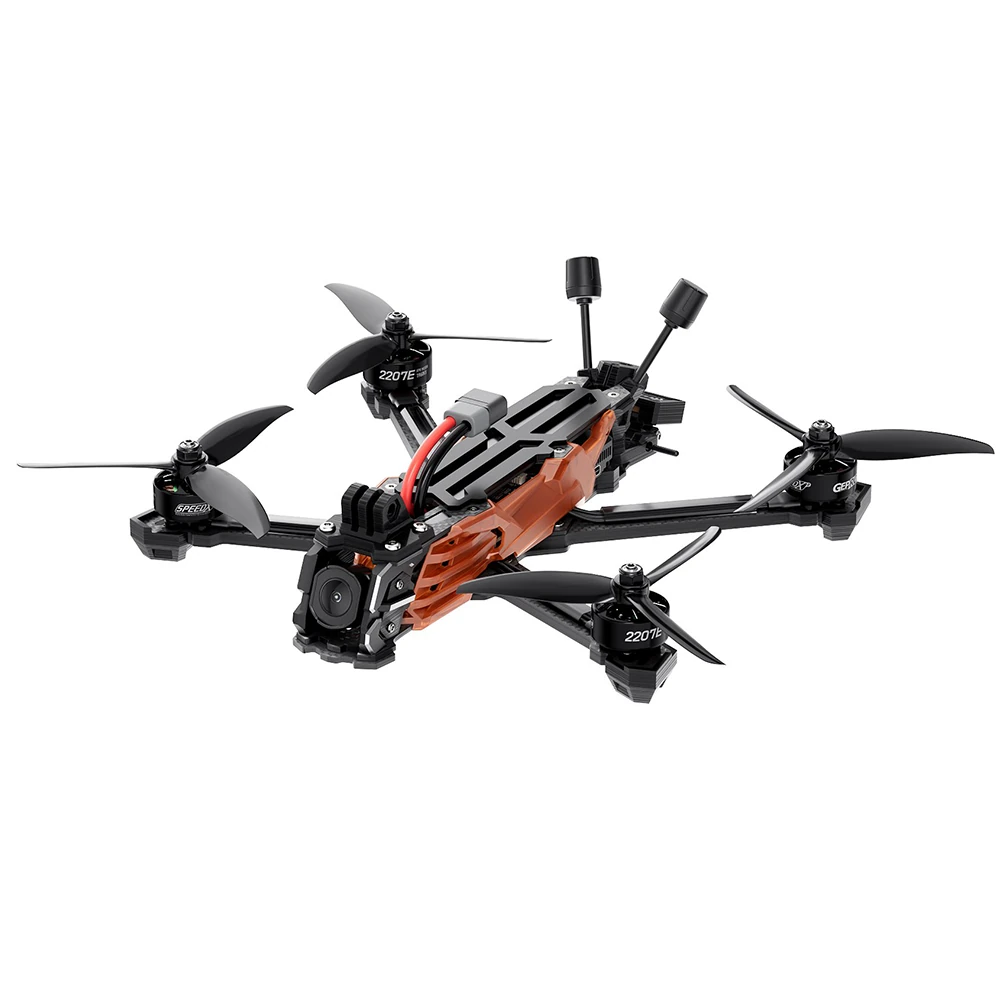

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.
New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a boldd, mech-inspired look. The DJI O4 Air Unit Pros larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.
Available in two models, Wide X and DC, to suit different flight needs.
Feature:
– DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
– CNC aluminum lens housing for a durabl, boldd design.
– GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
– Front lip design provides extra lens protection for confident flying.
– Wider 5mm carbon fiber arms for increased durability and a sleek build.
Specifications:
Brand: GEPRC
Model: Vapor D5
GPS: Geprc GEP M10 GPS
|
Model: |
Vapor X5 O4 Pro |
Vapor D5 O4 Pro |
|
Model for Frame: |
Vapor X5 Frame |
Vapor D5 Frame |
|
Wheelbase: |
230 mm |
238mm |
|
Top Plate: |
2.0 mm |
|
|
Middle Plate: |
2.0 mm |
|
|
Bottom Plate: |
2.5 mm |
|
|
Arm Thickness: |
5.0 mm |
|
|
FC: |
GEP-F722-HD v2 |
|
|
MCU: |
STM32F722 |
|
|
Gyro: |
ICM42688-P(SPI) |
|
|
Barometer: |
YES |
|
|
OSD: |
Betaflight OSD w/AT7456E |
|
|
ESC: |
TAKER H60_BLS 60A 4IN1 ESC |
|
|
VTX: |
DJI O4 Air Unit Pro |
|
|
Camera: |
O4 Pro Camera |
|
|
Antenna: |
O4 Pro Original Antenna |
|
|
Connector: |
XT60 |
|
|
Optional GPS: |
GEP-M10 GPS |
|
|
5-inch Motor: |
GEPRC SPEEDX2 2207E 1960KV |
|
|
5-inch Propeller: |
GEMFAN 5136 |
|
|
PNP Version Weight: |
409g5g |
4285g |
|
Receiver: |
PNP/GEPRC ELRS24/TBS Nano RX |
|
|
Recommended Battery: |
6S LiPo1300mAh 1800mAh |
|
|
Flight Time: |
14-19min |
|
Package Included:
1 x Vapor D5 Drone ( Optional Version)
2 x GEMFAN 5136
2 x Battery Anti-Slip Pads
1 x Spare Screw pack
1 x Vapor Side Panel
2 x M20*250mm Battery Straps
1 x L-Shaped Screwdriver 1.5mm
1 x L-Shaped Screwdriver 2.0mm
1 x GPro Mount
The Spare Screws Include
6 x M3*10mm Round Head Screws
6 x M3*8mm Round Head Screws
2 x M3*6mm Flat Head Screws
1 x M5*28mm Thin Head Screw
1 x M5 Flange Nut
4 x M3 Rivet Nuts
