Description
Specifications:
Brand: EMAX

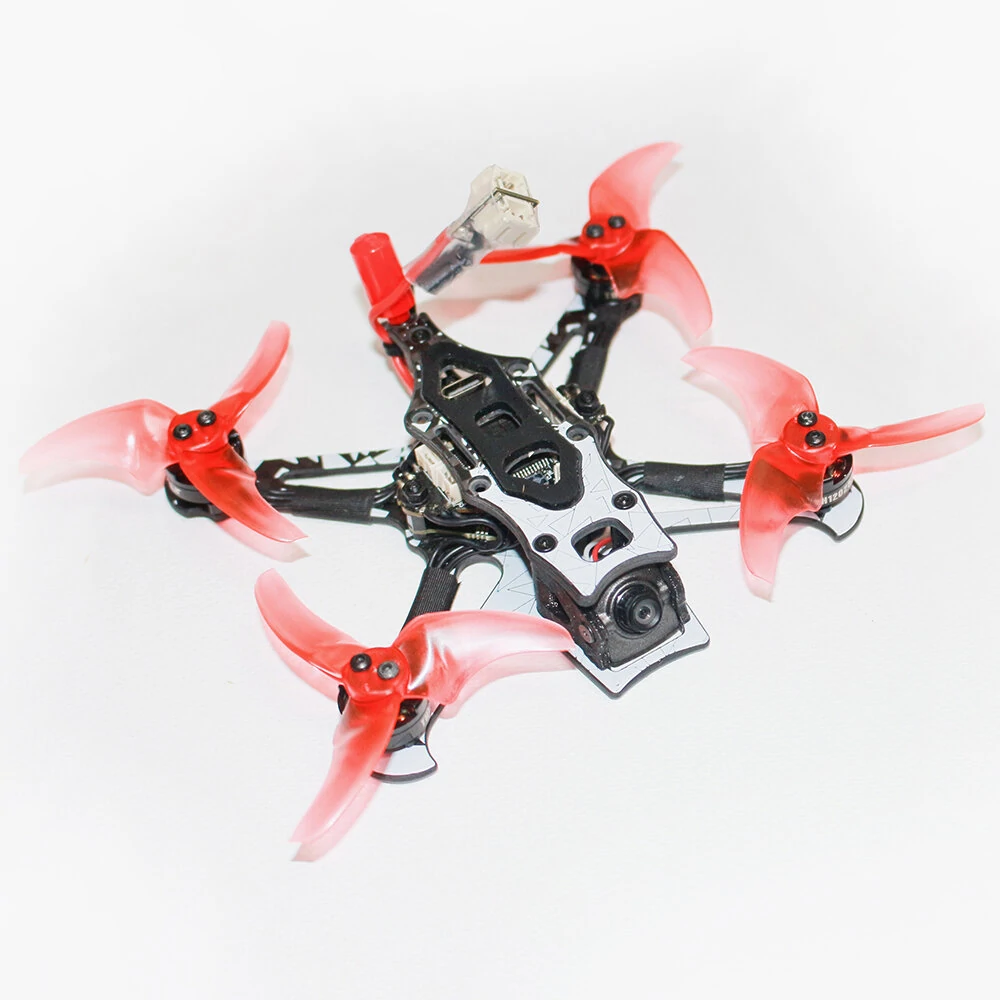

Model: Tinvhawk III PLUS Freestyle
Optional Version: Analog / HDZero
Optional Mode: BNF / RTF
| Aircraft model |
HDZero Version
|
Analog Version |
| Wheelbase |
110mm |
|
| Maximum appearance size |
10010422mm(Propeller not included) |
|
| Weight |
about 65.5g (excluding battery) |
about 62.5g (excluding battery) |
| Motor |
12025 7000KV |
|
| Propeller |
AVAN Rush 2.5inch three-blade propeller |
|
| Main control board |
F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard ELRS (2.4G) receiver (SPI communication), input voltage 1-2S |
|
| Camera |
HDZERO Nano Lite Camera |
RunCam Nano 6 |
| Image transmission |
HDZero whoop Lite 0/25mW/200mW |
32-bit 40CH open source image transmission 0/25mW/100mW/200mW |
| Battery |
1S HV 650mAh (With 2 1S batteries) |
|
| Remote Controller ( Only RTF Version has) : E8 Transmitte (ELRS-2.4G) |
||
| Maximum appearance size |
LWH=15014045mm |
|
| Weight |
about 260g (excluding battery) |
|
| Number of channels |
8 channels |
|
| Protocol |
ELRS-2.4G protocol |
|
| Working frequency |
2.4gHz frequency band (2400-2483.5MHz) |
|
| Power |
10mW/25mW/50mW/100mW |
|
| Battery |
Built-in 1800mAh 18650 lithium-ion battery |
|
| Charging system |
Built-in USB1A linear lithium-ion battery charging system |
|
| Working voltage |
3.7-4.2V |
|
| External interface |
Type-C interface. 3.5mm audio interface (wired trainer interface) |
|
| Others |
Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power, support adjustable send/return rate, support changing binding key |
|
| FPV Goggles
( ONLY RTF Version has) |
Transporter II HD |
Transporter II |
| Maximum appearance size |
14515592mm (excluding antenna) 145155190mm (including antenna) |
LWH=15010090mm |
| Weight |
about 425g (including headband and antenna) |
about 398g (including headband and antenna) |
| Screen resolution |
720*1080 |
480×800 |
