Description
Highlight:
– 2MP FPV HD Camera Stable & Clear FPV Feed
– Lightweight 100g Design Easy to Carry & Fly Anywhere
– 5.8GHz FPV Transmission
– 10ms Throttle Response
– 10-Minute Flight TimeNo Rush, Just Flow
– 1080p/60fps ,1/2.8′ Sensor & Reat-Time Video
Specification:
|
Item |
Parameter |
|
PROTOS |
Flight Control: Caddx Protos Aio 1.0 Video Transmission: Ascent Lite Motor Diagonal Distance: 78mm Motor: 1102 14000KV Propeller: HQprop U40mmx3GR-PC 1.5mm Weight: 104.4g1.5g Dimensions: 110×102.8x41mm Flight Endurance: 8.5min 0.5min RC Receiver: ELRS 2.4GHz |
|
FC |
Main Control Chip: STM32-F405RGT6 Gyroscope: MI270 Barometer: SPL06 Onboard Receiver: ESP8285 Receiver Protocol: ELRS 2.4GHz ESC Protocol Compatibility: Bluejay / BLHeli-S Optional ESC Maximum: 12A(Single Current Channel) |
|
VTX |
VTX Model: Ascent Lite Image Sensor: 1 / 2.8 inch Sensor FOV: 147 Ratio: 16:9 Resolution: 1080P 60FPS;720P 60FPS Built-in Storage: N/A Max Transmission Range: Max 3km Latency: Average delay 35ms Power: 25-100mW |
|
Ascent Goggles |
Communication Frequency: 5.725-5.850GHZ Transmit Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm I/O Interface: 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot Transmission Resolution: 1080P60FPS, 720P60FPS Code Rate: Max 50 Mbps Minimum Latency: Average 32ms Average Gain: 4.9dBi Polarization: LHCP Transmission Distance: >4km Channel: 8 Screen Resolution: 1920*1080 / 60Hz Screen Material: LCD Screen Size: 4.5 Inch Wide Voltage Input: 6V~25.2V (2S~6S) SD Card Slot: Support 256G |
|
CADDXFPV Alink |
Main Control Chip: AT32 F413RCT7 RF Module: ELRS 2.4GHZ RF Protocol: CRSF Max RF Power: 100mW (20dB) Number of Available Channels: 10 Channels (including 4 joystick channels) Joystick Type: Full-Bearing Hall-Sensor Joystick Assembly Function Switch: 1 x Latching Button / 2 x Momentary Buttons / 2 x 3-Position Toggle Switches / 1 x Scroll Wheel Status Indicator Module: 4 x Status Indicator LEDs / Buzzer Charging & Communication Interface: USB-Type C Battery Specification: Lipo 1s 1000mAh Max Charging Power: 5V / 1A / 3.50W Operating Voltage Range: DC 3.50V~4.20V Dimensions: 158mmx108mmx58mm Weight: 180g5g |
|
2S Battery |
Name: 2S Battery Battery Type: Li-ion (Lithium-ion Battery) Battery Capacity: 840mAh Battery Specification: 2S1P (2 Cells in Series, 1 in Parallel) Discharge Rate (C-Rate): 15C Maximum Power: 6.384Wh Voltage Range: 6.80V~8.70V Max Charging Voltage: 8.5V Charging Method: 2S Charger Charging Time: 20min Protection Mechanism: When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate. Dimensions: 77.5x24x21mm Weight: 41.9g0.5g |
|
2S Charger |
Name: 2S Charger Display: LEDx4 Channel: 3 (Sequential Charging) Function Selection: Charging, Storage Battery Type: Li-ion 2S 840mAh Battery Input Voltage: 1215V (PD Input, 5V Adapter Not Supported) Output Voltage: 8.7V Input Current: Max.3A Charging Current: Max.3A Balancing Current: Max.0.21A Charging Power: Max.25W Discharging Power: Total Power: 5W (Max 1.6W per Channel) Interface: Type-C Operating Temperature: -10~45C Storage Temperature: -20~60C Dimensions: 94x63x39.1mm Weight: 650.5g |

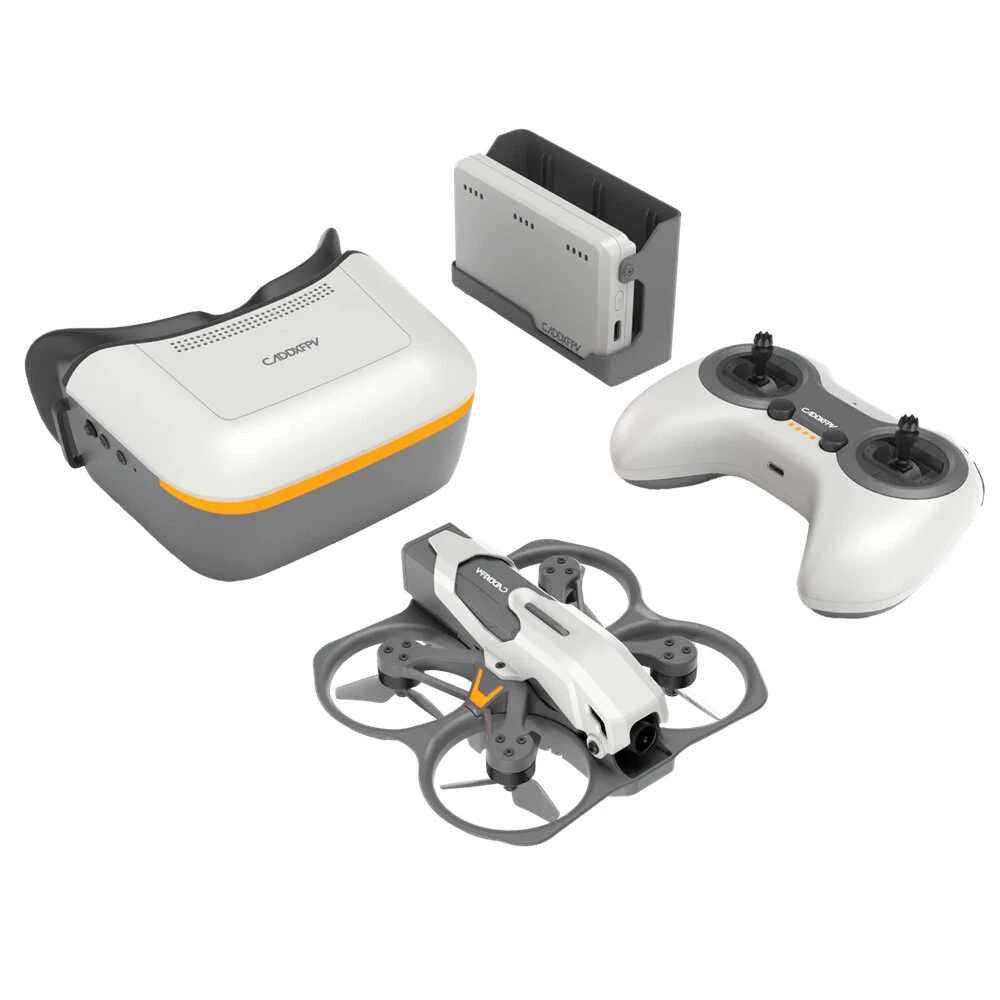

Package Included:
1 x Protos FPV Drone
1 x Ascent Goggles
1 x Alink Remote Control
1 x Goggles Battery
1 x 2S charging Hub
3 x Batteries
1 x XT30 to DC Power Cable
1 x Storage Bag
1 x Lens Cleaning Cloth
1 x Spare Head Cover
2 x CW/CCW Spare Propellers
1 x USB-C Cable
