Description
Specifications:
Brand: HOBBYFLY

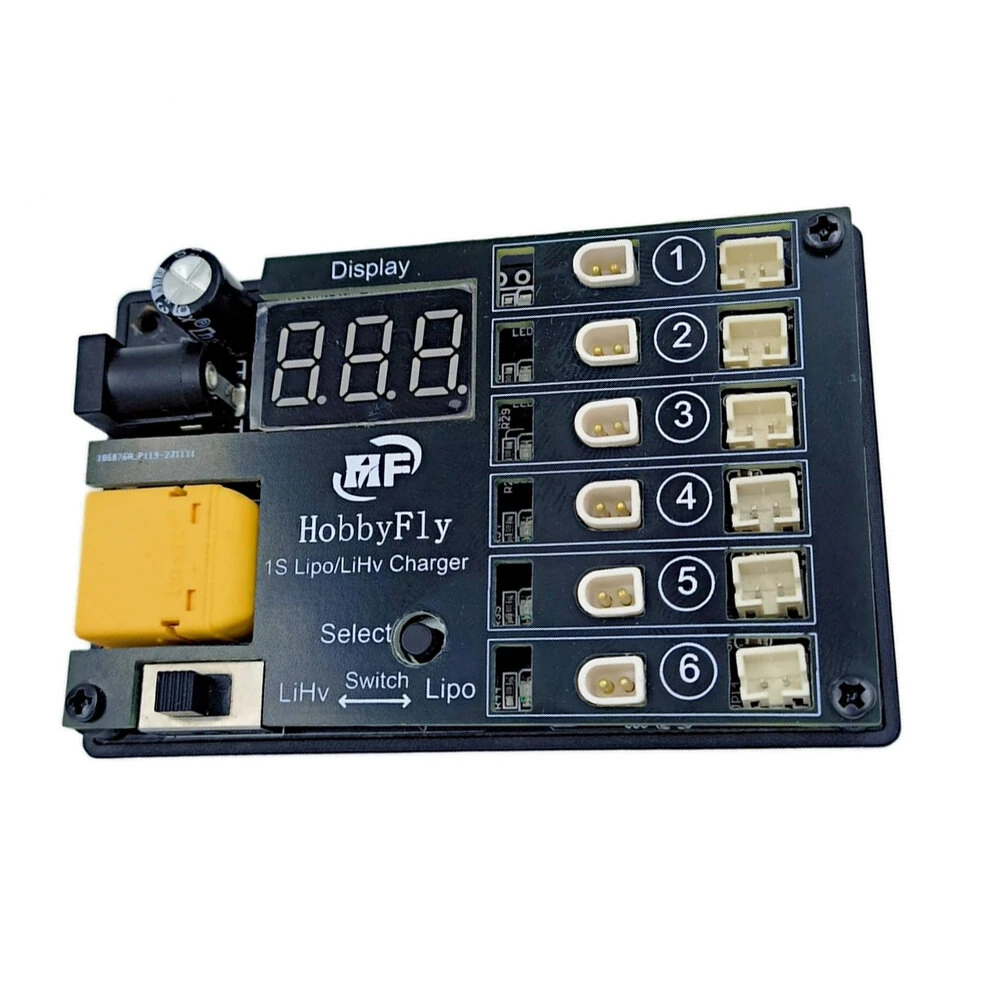

Item Name: 6-Port 1S Battery Charger
Supported Batteries: 1S 4.20V/3.7V LiPo and 4.35V/3.8V LiHV
Input Connector: 12V/2A DC55*25 or XT60
Input Voltage Range: 7V-27V (2S-6S)
Maximum Charge Current: 0.4A (Single Port)
Supported Battery Connectors: BT2.0 & PH2.0
Battery Type: LiMH (4.35V) and LiPo (4.20V)
Low Input Voltage Protection: 3.6V/cell safety cutoff voltage (if using 2S-6S batteries as the input power source)
Dimensions: 85*55*20mm
Features:
– Each charging channel is independent, eliminating the need to worry about voltage differences between batteries. This charger features low-voltage protection (3.6V/cell safety termination voltage) to prevent over-discharge of the input power supply.
Instructions:
1. Power the charger with a 12V power adapter or a 2S-6S battery. The display will first show ‘-3p,’ followed by the input voltage.
2. Set the battery type switch to LiHV or LiPo depending on the battery type.
3. Press the button to set the three-digit LED display to match the input power type.
This step activates low-voltage protection to prevent over-discharge of the input power supply battery.
Terminal voltage: 3.6V/cell. Therefore, the discharge protection voltages are as follows:
12/2A power adapter input ——- ‘-dc’
2S battery input ——- ‘-2P’ (end voltage 7.2V)
3S battery input ——- ‘-3P’ (end voltage 10.8V)
4S battery input ——- ‘-4P’ (end voltage 14.4V)
5S battery input ——- ‘-5P’ (end voltage 18V)
6S battery input ——- ‘-6P’ (end voltage 21.6V)
4. When the display shows the correct input, simply wait 3 seconds without performing any operation. The setup will automatically complete. The charger will then indicate that the input voltage is stable.
5. All 6 LEDs will flash. You can then insert a battery and this channel will begin automatic charging.
Do not use BT2.0 and Ph2.0 simultaneously on the same channel.
Charging Status:
When no battery is inserted and in standby mode: Flashing green
Charging: Solid green
Charging complete: Off green
If you need to adjust the input type during charging, simply press the button to change again.
Package included:
1 * 6-port 1S battery charger
1 * Adapter (Optional)
